Sports Stadium LED Display — P5 / P8 / P10

Category: Outdoor Advertising LED Displays

Sports Stadium LED Display — P5 / P8 / P10 — image 1Sports Stadium LED Display — P5 / P8 / P10 — image 2Sports Stadium LED Display — P5 / P8 / P10 — image 3Sports Stadium LED Display — P5 / P8 / P10 — image 4Sports Stadium LED Display — P5 / P8 / P10 — image 5Sports Stadium LED Display — P5 / P8 / P10 — image 6Sports Stadium LED Display — P5 / P8 / P10 — image 7

Outdoor Fixed

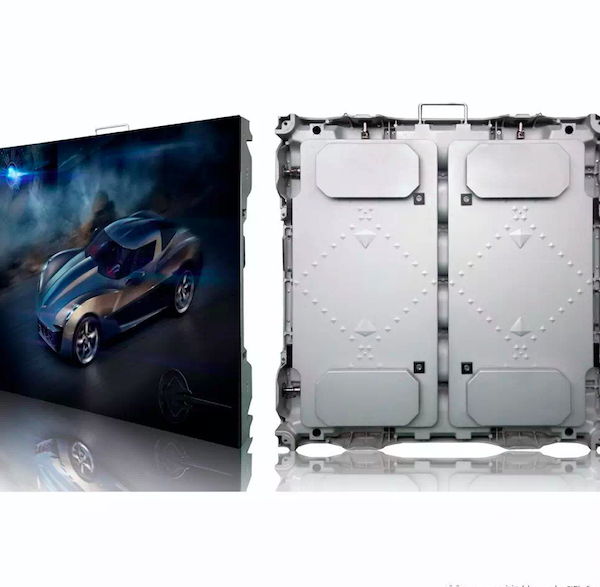

Sports Stadium LED Display — P5 / P8 / P10

Application: Sports stadium. Ground Type Name: Sports series Pixel pitch: 5mm 8mm 10mm Brightness: 6000 nits Cabinet Size: 960×960×90 mm Feature: Big size Die-casting Aluminium cabinet, can be stacking hanging installation,

Application
Sports stadium. Ground
Type Name
Sports series
Pixel pitch
5mm 8mm 10mm
Brightness
6000 nits
Cabinet Size
960×960×90 mm
Feature
Big size Die-casting Aluminium cabinet, can be stacking hanging installation,
Request a quotation WhatsApp us

Key features

Green Harvest SPORTS7

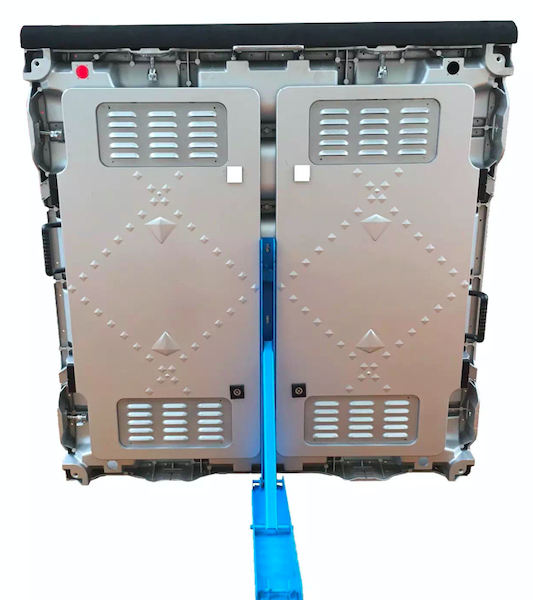

Big & Strong Die-casting cabinet design cabinet size, 960 x 960mm Thickness 90mm

Green Harvest SPORTS6

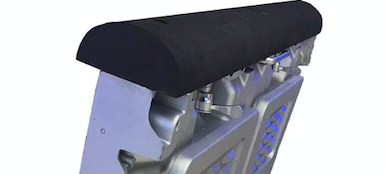

Soft Top cover The Top Soft cover to protect the people hurt.

Green Harvest SPORTS5

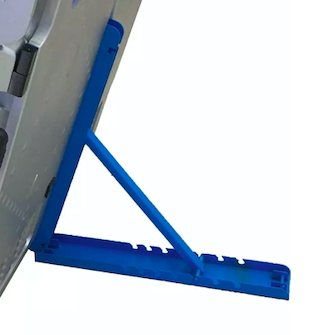

Folding Supporter The backside supporter can be folded, same as normal outdoor rental led display.

Green Harvest SPORTS2

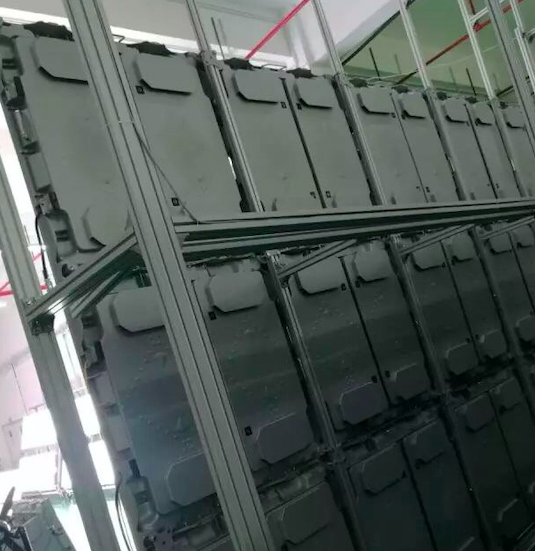

Stacking Assemble

Green Harvest SPB 8

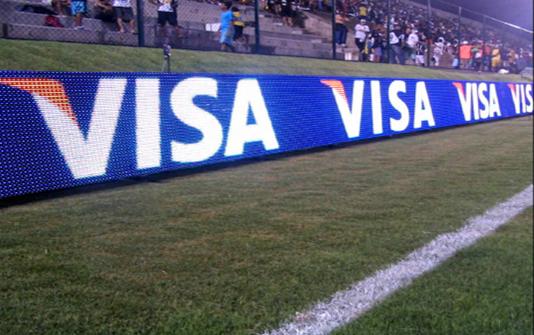

Banner Assemble

Specifications

td>Pixel Pitchtd>Pixel density（dot/m2）td>Brightness (nits)td>Drive Methodtd>Module pixel (mm)td>Screen power consumption (W/㎡)td>Standard Certification
Type NameSports P10Sports P8Sports P5
Pixel Pitch10mm8mm5mm
Pixel density（dot/m2）100001562540000
Brightness (nits)≥6000≥6000≥6000
Drive Method1/21/41/4
Refresh rate (HZ)≥4800
Module pixel (mm)320x160320x160320x160
Cabinet size (mm)960x960x90mm
Cabinet materialDie-casting Aluminium
Cabinet weight35kg/cabinet
Screen work Voltage (V)110~240V/AC
Screen power consumption (W/㎡)Max 650 / Average200Max 650 / Average200Max 650 / Average200
Screen View angle160°/140°
IP GradeIP65
Operationg Temperature/Humidity-20~50℃ 10~90% RH
Storage Temperature/Humidity-40~60℃ 10~90% RH
Life Time＞50000H
Standard CertificationCE CCCCE CCCCE CCC

Need exact specifications for your project?

Tell us the required size, pixel pitch and application. Our engineers will recommend the most cost-effective configuration.

Send an enquiry
