RH Rental LED Display

Name: RH Rental LED Display
Brand: Green Harvest Optoelectronics Co., Ltd.

Category: Premium Rental LED Displays

Rental (Premium)

RH Rental LED Display

Application: Stage, show rooms, TV station, meeting room Type Name: RH series Pixel pitch: indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm Cabinet Size: 500×500mm or 500×1000mm Feature: easy to carry, easy to assemble, ultra slim & light cabinet design, high resolution, high refresh rate.

Application: Stage, show rooms, TV station, meeting room
Type Name: RH series
Pixel pitch: indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm
Cabinet Size: 500×500mm or 500×1000mm
Feature: easy to carry, easy to assemble, ultra slim & light cabinet design, high resolution, high refresh rate.

Request a quotation WhatsApp us

Key features

Green Harvest WeChatd6e1a4ca032e307e51a7bca648aa9c4f

Green Harvest WeChatd596f8e987abae72ae50e5eb7ef6dc06

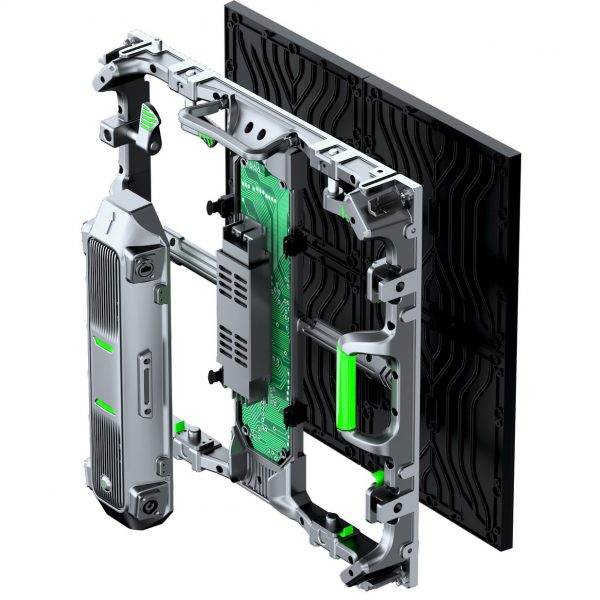

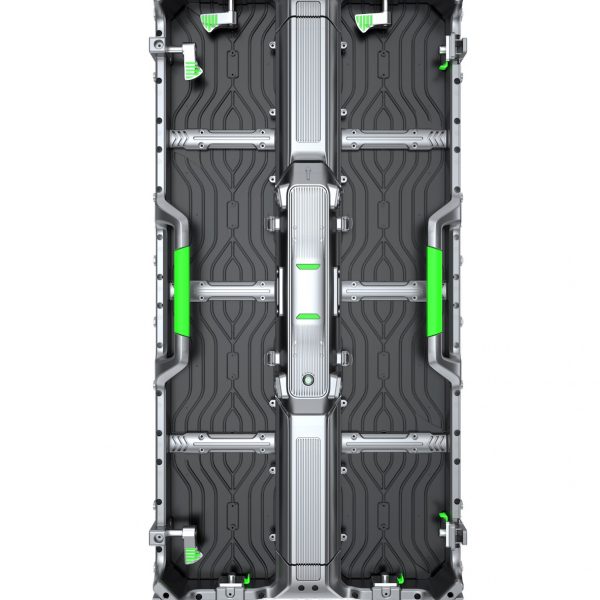

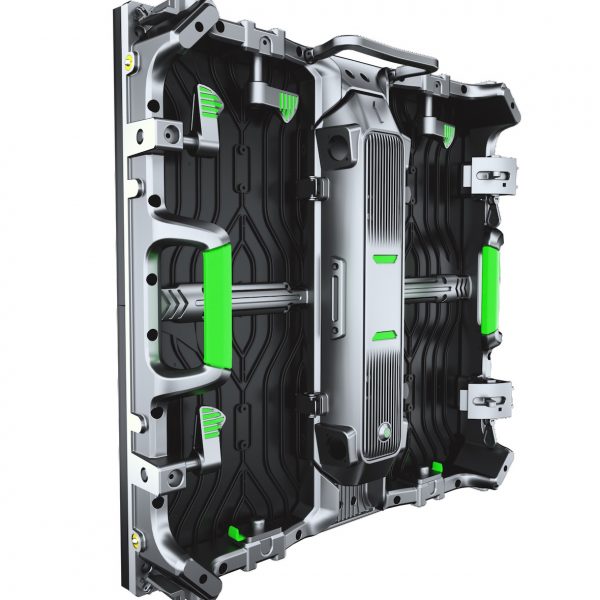

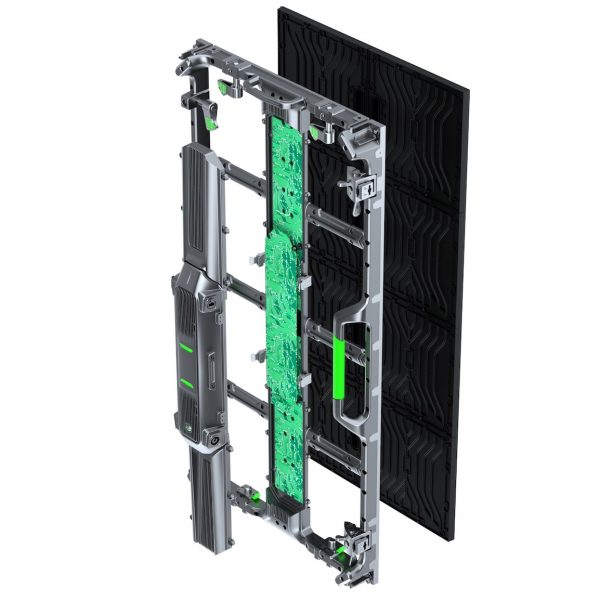

Slim cabinet 75mm Have 500x500mm & 500x1000mm 2 size 500x500mm & 500x1000mm cabinet can mixed assemble.

Both 500×500 and 500x1000mm cabinet can make curved shape , only 500mm can make 90° shape

Green Harvest WeChat6c58f71ea7b4bd1a250b92c44cc7363e

Green Harvest WeChatb19e3a4e0df3984e075587ac97e27fca

The module is hard Hub connection

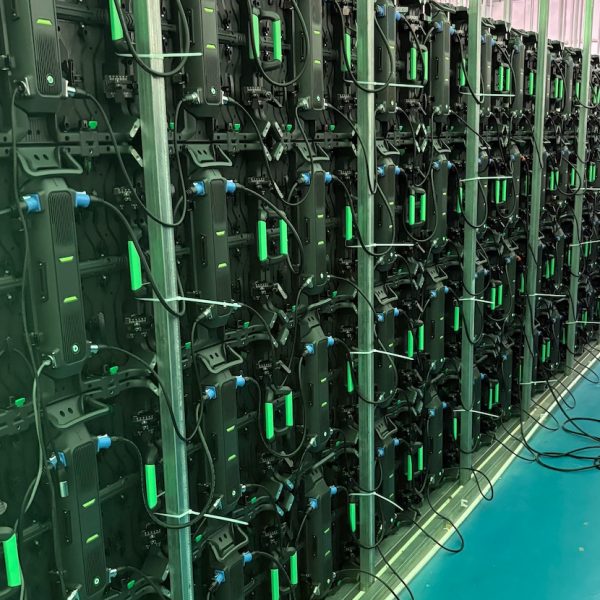

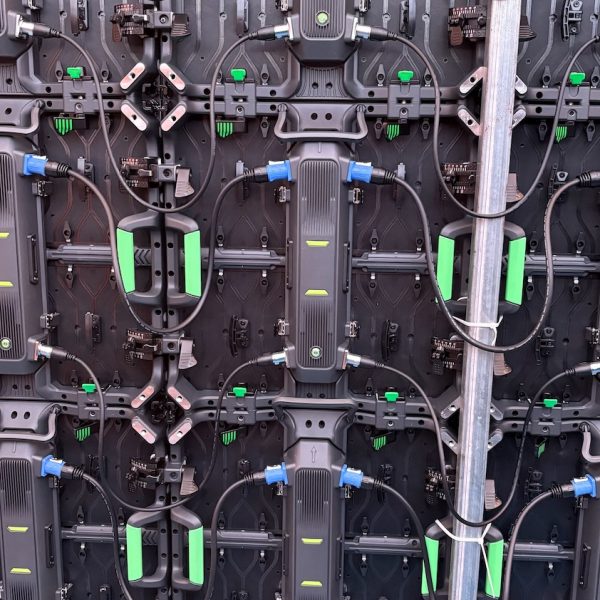

Strong Locks for hanging installation The cabinets locks are smooth edged, easy handling and strong that you can hang up to 20pcs cabinet in vertical.

Front & Rear Maintenance It makes you remove the modules without any tools and maintain the screen in front side as well as rear side easily.

Hanging assemble or Stacking assemble No tools are required for installation of screen. Easy assemble

Corner protector Cabinet 4 corner have a protector.

Specifications

Indoor rental specification:

td>Pixel Pitchtd>Pixel density（dot/m2）td>Brightness (nits)td>Drive Methodtd>Screen power consumption (W/㎡)td>Standard Certification

Type Name	P1.56mm	P1.953mm	P2.604mm	P2.976mm	P3.91mm
Pixel Pitch	1.56mm	1.953mm	2.604mm	2.976mm	3.91mm
Pixel density（dot/m2）	640x640	512x512	384x384	336x336	256x256
Brightness (nits)	≥600	≥700	≥800	≥1000	≥1000
Drive Method	1/48	1/32	1/32	1/28	1/16
Refresh rate (HZ)	≥7680
Cabinet size (mm)	500x500x75 or 500x1000mm
Cabinet material	Die-casting Aluminium
Cabinet weight	28kg/m²
Work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 750 / Average250	Max 750 / Average250	Max 750 / Average250	Max 750 / Average250	Max 750 / Average250
Screen View angle	160°/160°
IP Grade	IP43
Operationg Temperature/Humidity	-20~50℃ , 10~90% RH
Storage Temperature/Humidity	-40~60℃ , 10~90% RH
Life Time	＞50000Hours
Standard Certification	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,

Outdoor rental specification:

td>Pixel Pitchtd>Pixel density（dot/m2）td>Brightness (nits)td>Drive Methodtd>Screen power consumption (W/㎡)td>Standard Certification

Type Name	OR2.6	OR2.97	OR3.91	OR4.81
Pixel Pitch	2.604mm	2.976mm	3.91mm	4.81mm
Pixel density（dot/m2）	147456	112896	65536	43264
Brightness (nits)	≥5000	≥5000	≥5000	≥5000
Drive Method	1/32	1/28	1/16	1/13
Refresh rate (HZ)	≥7680HZ
Cabinet size (mm)	500x500x75 or 500x1000mm
Cabinet material	Die-casting Aluminium
Cabinet weight	28kg/m²
Work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 750 / Average250	Max 720 / Average240	Max 450 / Average 150	Max 450 / Average 150
Screen View angle	140°/140°
IP Grade	IP65
Operationg Temperature/Humidity	-20~50℃ , 10~90% RH
Storage Temperature/Humidity	-40~60℃ , 10~90% RH
Life Time	＞50000H
Standard Certification	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,
