RP Bendy Rental LED Display

Name: RP Bendy Rental LED Display
Brand: Green Harvest Optoelectronics Co., Ltd.

Category: Premium Rental LED Displays

Rental (Premium)

RP Bendy Rental LED Display

Application: Stage, show rooms, TV station, meeting room Type Name: RP series Pixel pitch: indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm Cabinet Size: 500×500mm or 500×1000mm Feature: easy to carry, easy to assemble, ultra slim & light cabinet design, high resolution, high refresh rate.

Application: Stage, show rooms, TV station, meeting room
Type Name: RP series
Pixel pitch: indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm
Cabinet Size: 500×500mm or 500×1000mm
Feature: easy to carry, easy to assemble, ultra slim & light cabinet design, high resolution, high refresh rate.

Request a quotation WhatsApp us

Key features

Green Harvest WeChatedf3876f7c7a4e8b2db075c0351512f5

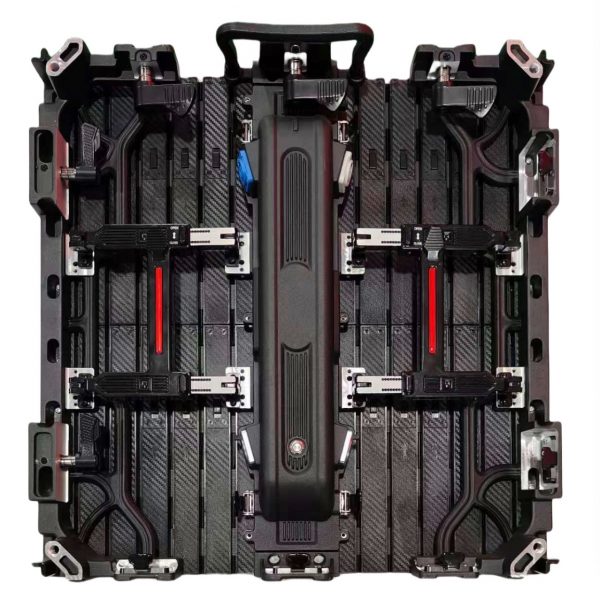

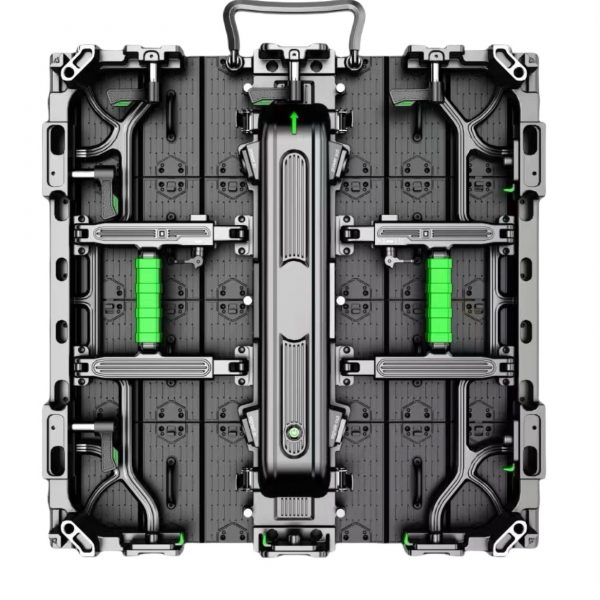

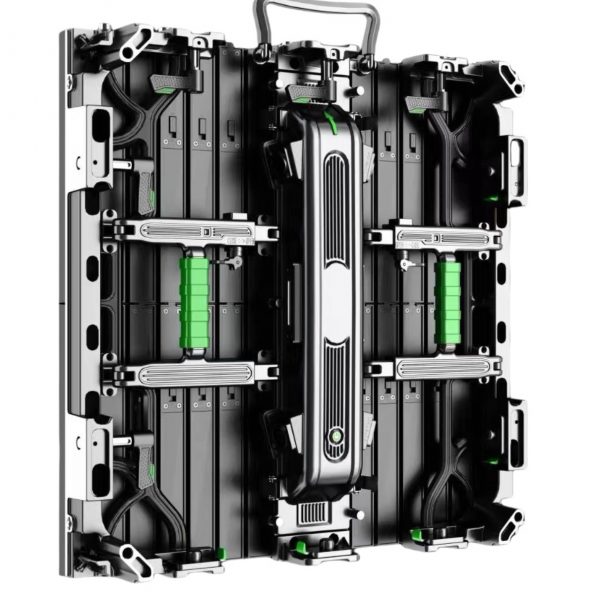

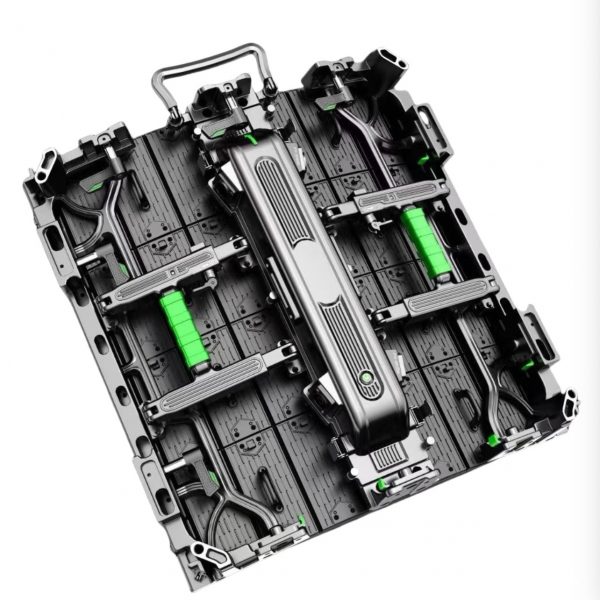

Stable and strong Flexible structure Die-casting Aluminum Cabinet

Green Harvest WeChat4da988714537e54fccd27a85e3eb2bde

Green Harvest WeChat2c783e584cf6d4f321193788b8629216

Green Harvest WeChatcff1ea1a9e0a743121d50fec6c5649a2

Green Harvest WeChatfb287ff97dd0d9b756e1f15fcd02e55a

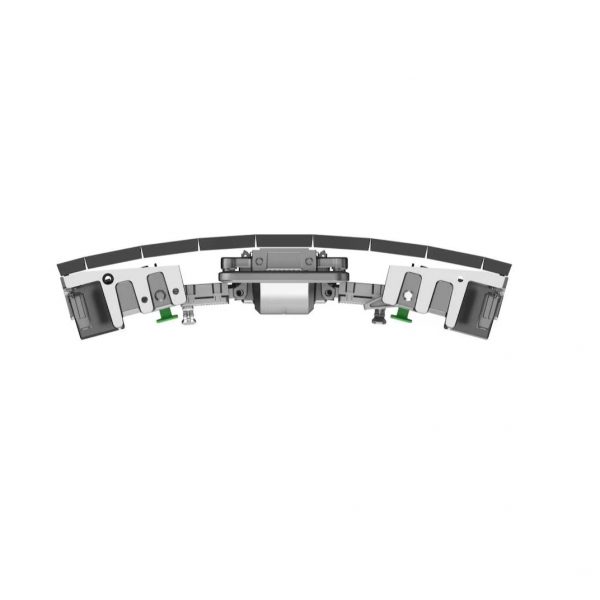

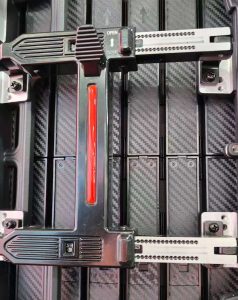

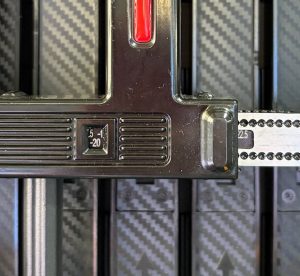

Each cabinet supports concave or convex 45°， 8 cabinets can form a circle, Each box has two sets of bending control locks , each lock ±22.5°

Green Harvest WeChat788347cf8beefdadfcec5e5d365946ff

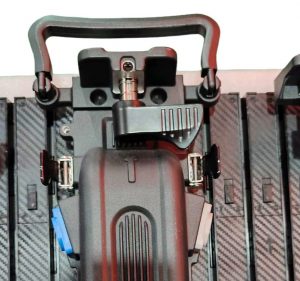

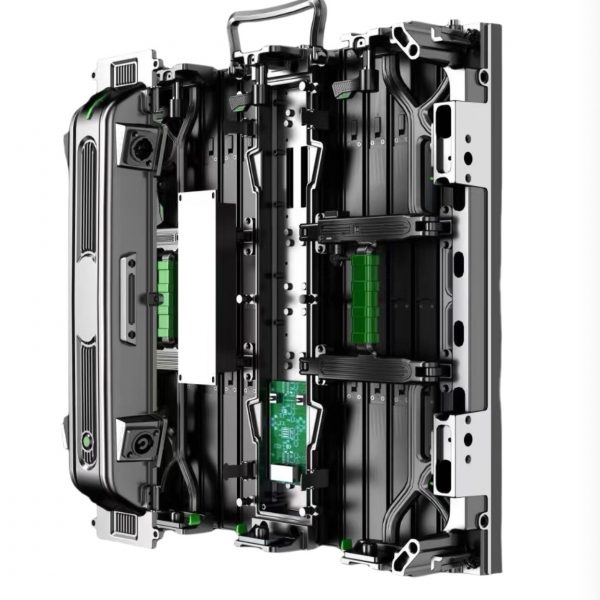

Fast changed Control Box

Green Harvest WeChat3a2036ebf24c25671be68b8d3e6fd9a9

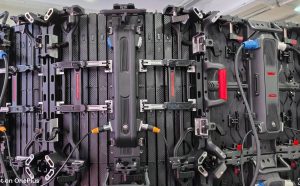

Strong Locks for hanging installation The cabinets locks are smooth edged, easy handling and strong that you can hang up to 20pcs cabinet in vertical.

Green Harvest WeChat42249c2c4cacc2941284e264c723a48b

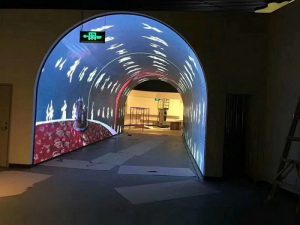

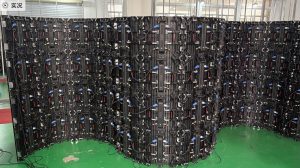

No edges, no seams, smooth and soft, you can bend it however you want

Both Use for rental Or fixed installation

Corner protector Cabinet 4 corner have a protector.

Green Harvest WeChat9faf7102ca654b80384ca677a70bf381

Mixed assemble with RY，RH , RD and RK series

Specifications

Indoor rental specification:

td>Pixel Pitchtd>Pixel density（dot/m2）td>Brightness (nits)td>Drive Methodtd>Screen power consumption (W/㎡)td>Standard Certification

Type Name	P1.56mm	P1.953mm	P2.604mm	P2.976mm	P3.91mm
Pixel Pitch	1.56mm	1.953mm	2.604mm	2.976mm	3.91mm
Pixel density（dot/m2）	640x640	512x512	384x384	336x336	256x256
Brightness (nits)	≥600	≥700	≥800	≥1000	≥1000
Drive Method	1/48	1/32	1/32	1/28	1/16
Refresh rate (HZ)	≥7680
Cabinet size (mm)	500x500x75 or 500x1000mm
Cabinet material	Die-casting Aluminium
Cabinet weight	28kg/m²
Work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 750 / Average250	Max 750 / Average250	Max 750 / Average250	Max 750 / Average250	Max 750 / Average250
Screen View angle	160°/160°
IP Grade	IP43
Operationg Temperature/Humidity	-20~50℃ , 10~90% RH
Storage Temperature/Humidity	-40~60℃ , 10~90% RH
Life Time	＞50000Hours
Standard Certification	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,

Outdoor rental specification:

td>Pixel Pitchtd>Pixel density（dot/m2）td>Brightness (nits)td>Drive Methodtd>Screen power consumption (W/㎡)td>Standard Certification

Type Name	OR2.6	OR2.97	OR3.91	OR4.81
Pixel Pitch	2.604mm	2.976mm	3.91mm	4.81mm
Pixel density（dot/m2）	147456	112896	65536	43264
Brightness (nits)	≥5000	≥5000	≥5000	≥5000
Drive Method	1/32	1/28	1/16	1/13
Refresh rate (HZ)	≥7680HZ
Cabinet size (mm)	500x500x75 or 500x1000mm
Cabinet material	Die-casting Aluminium
Cabinet weight	28kg/m²
Work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 750 / Average250	Max 720 / Average240	Max 450 / Average 150	Max 450 / Average 150
Screen View angle	140°/140°
IP Grade	IP65
Operationg Temperature/Humidity	-20~50℃ , 10~90% RH
Storage Temperature/Humidity	-40~60℃ , 10~90% RH
Life Time	＞50000H
Standard Certification	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,	CE, ROHS, UL, 3C,
